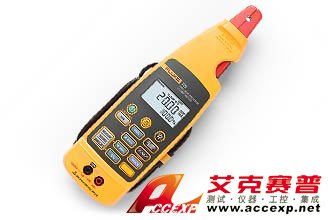

Fluke 772 毫安過程鉗型表
名稱：鉗形表
品牌：
型號：
簡介：Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke 772 mA Clamp Meter expand upon...
申請服務
- 產品介紹
Need more hours in your day?
Save time by NOT breaking the loop on 4-20 mA signal measurements.
Are you spending time:
Taking mA measurements by removing a wire and breaking the loop
Calling the control room to isolate a loop
Testing analog input/output on a console
Troubleshooting devices with mA inputs and outputs
Repairing intermittent or erratic 4-20 mA loops
Going back to the shop to get extra tools
If you need more time in your busy day take a good look at the Fluke 772 mA Clamp Meters. It’s designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.
you spending time:
Taking mA measurements by removing a wire and breaking the loop
Calling the control room to isolate a loop
Testing analog input/output on a console
Troubleshooting devices with mA inputs and outputs
Repairing intermittent or erratic 4-20 mA loops
Going back to the shop to get extra tools
If you need more time in your busy day take a good look at the Fluke 772 mA Clamp Meters. It’s designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.
Here are some specific ways the Fluke 772 Clamp Meters will help you:
Milliamp Clamp Features
Application
How it saves time and money
Measure mA signals for PLC and control system analog I/O without breaking the loop
Measures low level dc current
Correlate process indication with real physical value
Measure output signals from transmitters without breaking the loop
Maintain and troubleshoot process and automation equipment without breaking the loop
No disruption to the process
Detachable clamp with extension cable
Measurements in tight locations
Enables measurements in difficult situations
Measurement Spotlight
Illuminates hard to see wires in dark enclosures
Measurement process is easier and quicker
Measure up to 99.9 mA range non-contact
Wide range of measurements
Measures 10 to 50 mA signals in older control systems
Automatic power off
After 15 minutes and 2 minute automatic off for backlight and spotlight
Saves battery life
Fluke 772 mA 鉗表的功能:
最佳的 0.2% 準確度
0.01 mA 分辨率和靈敏度
無需“斷開回路即可測量 4 至 20 mA 信號
測量 PLC 和控制系統模擬 I/O 的 mA 信號
可顯示 mA 測量值和 4 至 20 mA 量程百分比的雙背光顯示屏
測量聚光燈照亮黑暗機箱內難以發現的線路
具有延長線的可拆式鉗表，可在狹小的空間中進行測量
使用 99.9 mA 量程測量舊控制系統中的 10 至 50 mA 信號
自動更改 4 至 20 mA 輸出以便進行遠程測試
自動關閉、背光超時等省電功能可延長電池壽命
“保持功能可捕獲和顯示不斷變化的測量值
通過表筆“接入回路測量功能測量 4 至 20 mA 信號
同步24V回路供電并測量回路mA信號，可為傳送裝置供電并對其進行測試
輸出 4 至 20 mA 信號源以測試控制系統 I/O 或 I/P
mA 輸出線性漸變或 25% 分步輸出
自動更改 4 至 20 mA 輸出以便進行遠程測試
環境技術指標
可測量導線的直徑 0.177 或 4.5 mm（最大值）
操作溫度 -10 至 50 ºC
存放溫度 -25 至 60ºC
操作濕度 < 90% @ <30 ºC, < 75% @ 30 至 55ºC
操作海拔高度 0 至 2000 m
IP 等級 IP 40
尺寸 59 x 38 x 212 mm, (2.32 x 1.5 x 8.35 in.)
重量 260G, (9.1 oz.)
振動 隨機 2 g, 5 至 500 Hz
撞擊 1 米落體試驗（鉗夾除外）
EMI/RFI 符合 EN61326-1 標準
注:對于采用鉗夾的電流測量，應將 1mA 添加至值為 1V/m（最多為 3V/m）的 EMC 場強的指術指標。
溫度系數 0.01% ºC
(<18? 或 > 28?)
電源，電池壽命 (2) 節 AA 1.5 V 堿性電池，IEC LR6，通常 40 小時
保修 電子元件保修三年, 電纜和鉗表組件保修一年
功能技術指標
mA 測量
（由鉗表測量）
分辨率和量程: 0 至 20.99 mA
準確度: 0.2% + 2 位數
分辨率和量程: 21.0mA 至 100.0 mA
準確度: 1% + 5 位數
mA 測量
（由鉗表測量）
分辨率和量程: 分辨率和量程: 0 至 24.00 mA
準確度: 0.2% + 2 位數
mA 輸出 (最大 mA 驅動:
24 mA進入 1,000 歐姆負載)
分辨率和量程: 分辨率和量程: 0 to 24.00 mA
準確度: 0.2% + 2 位數
mA 模擬
(最大電壓 50 V dc)
分辨率和量程: 分辨率和量程: 0 to 24.00 mA
準確度: 0.2% + 2 位數
