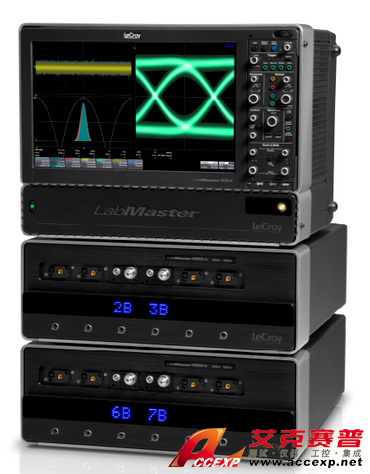

美國力科 LeCroy LabMaster 9 Zi-A 示波器代表著帶寬(45GHz)、采樣率(120GS/s)、通道性能(最大5通道45GHz、10通道30GHz、20通道20GHz)以及分析存儲深度等方面的頂峰(最高768Mpts/Ch)（極限)。對于大多數要求極高的研究和應用，例如下一代光傳輸?shù)拈_(kāi)發，LabMaster 9 Zi-A是唯一的解決方案。
美國力科 LeCroy LabMaster 9 Zi-A 示波器LabMaster 9 Zi-A 模塊化的示波器系統完全顛覆了傳統的示波器功能和性能的定義。
最高帶寬下的多通道運行
5通道 @45GHz
10通道 @30GHz
20通道 @20、16、13GHz
方便靈活地升級帶寬和通道數
采用ChannelSynnc™來精確同步所有的捕獲模塊
服務器級CPU(有效時鐘=33.6GHz，最高RAM=192GB)
最低抖動噪聲基底(125 fs rms)和最高時基穩定性。
美國力科 LeCroy LabMaster 9 Zi-A 示波器提供了更多的特性，其模塊化的設計在帶寬和通道數方面提供了簡單的升級途徑。ChannelSync通過使用一個獨立的10GHz時鐘來保證所有采樣模塊的所有通道的精確同步。從而在所有的通道間建立最高的時基精度和極低的抖動(275fs)。同時還附帶提供一個單一的標準示波器組件包。
美國力科 LeCroy LabMaster 9 Zi-A 示波器可以提供高達45GHz帶寬，120GHz采樣率和20個具有高保真信號的通道。升級的簡便性在設計之初即考慮到—開始按最小的系統進行配置，隨著需求的變化，增加更多的捕獲模塊來增加通道數，對已購買的模塊升級帶寬，或者在一個系統中有不同的帶寬配置。服務器級的CPU提供了超強的計算動力，使處理由LabMaster 9 Zi-A輸出的海量數據成為可能。
美國力科 LeCroy LabMaster 9 Zi-A 示波器代表的頂尖科技為高速數據傳輸和通信如28-32Gb/s的SERDES，多通道串行數據(40/100GbE,PCIe Gen3)以及相干調制光通信等通信的研發提供了唯一性測試解決方案。該系統還是滿足國防軍事以及航空航天領域應用對多通道數和高帶寬需求的理想選擇。
美國力科 LeCroy LabMaster 9 Zi-A 示波器主要規格：
帶寬 13-45 GHz
起步價 $194,000
標準記錄長度  20 Mpts/Ch
最大記錄長度 768 Mpts/Ch
最高采樣率 120 GS/s
LeCroy LabMaster 9 Zi-A 13 GHz 示波器
13 GHz, 40 GS/s, 4ch, 20 Mpts/Ch LabMaster Slave Acquisition Unit
LeCroy LabMaster 9 Zi-A 16 GHz 示波器
16 GHz, 40 GS/s, 4ch, 20 Mpts/Ch LabMaster Slave Acquisition Unit
LeCroy LabMaster 9 Zi-A 20 GHz 示波器
20 GHz, 40 GS/s, 4ch, 20 Mpts/Ch LabMaster Slave Acquisition Unit
LeCroy LabMaster 9 Zi-A 30 GHz 示波器
30 GHz, 80 GS/s, 40 Mpts/Ch Digital Bandwidth Interleaved (DBI) Slave Acquisition Unit. Also operates in 20 GHz, 40 GS/s, 4ch, 20 Mpts/Ch mode.
LeCroy LabMaster 9 Zi-A 45 GHz 示波器
45 GHz, 120 GS/s, 60 Mpts/Ch Digital Bandwidth Interleaved (DBI) Slave Acquisition Unit. Also operates in 30 GHz, 80GS/s, 2ch, 40 Mpts/Ch mode and 20 GHz, 40 GS/s, 4ch, 20 Mpts/Ch mode.
Memory Options
LM9Zi-S-32
32 Mpt/Ch Memory Option for LabMaster 9 Zi-A
LM9Zi-M-64
64 Mpt/Ch Memory Option for LabMaster 9 Zi-A
LM9Zi-L-128
128 Mpt/Ch Memory Option for LabMaster 9 Zi-A
LM9Zi-VL-256
256 Mpt/Ch Memory Option for LabMaster 9 Zi-A
Sampling Rate Options
WM8Zi-2X80GS
80 GS/s on 2ch Sampling Rate Option for WaveMaster/SDA/DDA 8 Zi and 8Zi-A (not available for 820Zi, 825Zi/Zi-A, 830Zi/Zi-A, 9x30Zi-A, 845Zi-A, or 9x45Zi-A). Includes two separate external interleaving devices with storage case.
High Speed Output Accessories
LSIB-1
High speed PCIe Gen1 x4 digitizer output for LeCroy oscilloscope. Half-height card with custom connector
LSIB-HOSTBOARD
PCI Express x4 Host Interface Board for desktop PC
LSIB-HOSTCARD
PCI Express x1 Express Card Host Interface for laptop Express Card slot
LSIB-CABLE-3M
PCI Express x 4 3-meter cable with x4 cable connectors included
LSIB-CABLE-7M
PCI Express x 4 7-meter cable with x4 cable connectors include
Serial Data Analysis
LM9Zi-SDAII
Serial Data Analysis Software Package for LabMaster 9 Zi Series
LM9Zi-CBL-DE-EMBED
Cable De-embedding Software Package for LabMaster 9 Zi Series
LM9Zi-EYEDRII
Eye Doctor II Software Package for LabMaster 9 Zi Series
Serial Data Compliance
LM9Zi-ET-PMT
Electrical Telecom Pulse Mask Test Package for LabMaster 9 Zi Series
LM9Zi-SDM
Serial Data Mask Software Package for LabMaster 9 Zi Series
QPHY-MIPI-DPHY
QualiPHY Enabled MIPI D-PHY Software Option
QPHY-PCIe3
QualiPHY Enabled PCIe 3.0 Software Option
QPHY-DDR2
QualiPHY DDR2 Compliance Software Option
QPHY-DDR3
QualiPHY Enabled DDR3 Software Option
QPHY-DisplayPort
QualiPHY Enabled DisplayPort Software Option
QPHY-ENET
QualiPHY Ethernet Application Software
QPHY-HDMI
QualiPHY Enabled HDMI Software Option (TF-HDMI-3.3V-QUADPAK required;WavePro 760Zi requires SDA II option)
QPHY-LPDDR2
QualiPHY LPDDR2 Compliance SW
QPHY-PCIe
QualiPHY Enabled PCIe Software Option (for Gen1 and Gen2 testing)
QPHY-SAS2
QualiPHY SAS2 Compliance Software
QPHY-SATA-TSG-RSG
QualiPHY Enabled SATA Software Option
QPHY-USB
USB Application Software Package
QPHY-USB3-Tx-Rx
QualiPHY Enabled USB 3.0 Software Option
QPHY-UWB
WiMedia UWB Transmitter Measurement Software Option
ENET-2ADA-BNCSMA
2 x BNC to SMA Adapter
ENET-2CAB-SMA018
2 x 18 inch SMA to SMA Cable
ENET-2CAB-SMA036
2 x 36 inch SMA to SMA Cable
Computer Upgrade
GPIB-2
GPIB Option for LeCroy oscilloscope. Half-height card with custom connector.
LM9Zi-160GB-RHD-02
Additional 160 GB Hard Drive for LM9MZi-A. Includes Windows 7 OS, LeCroy oscilloscope software and critical scope operational file duplicates.
LM9Zi-500GB-HD
Upgrade from standard size hard drive to 500 GB hard drive
LM9Zi-500GB-RHD-02
Additional 500 GB Hard Drive for LM9MZi-A. Includes Windows 7 OS, LeCroy oscilloscope software and critical scope operational file duplicates.
LM9Zi-24-UPG-48GBRAM
Upgrade from 24 GB to 48 GB CPU RAM at time of initial shipment
LM9Zi-24-UPG-96GBRAM
Upgrade from 24 GB to 96 GB CPU RAM at time of initial shipment
LM9Zi-24-UPG-192GBRAM
Upgrade from 24 GB to 192 GB CPU RAM at time of initial shipment
LM9Zi-VIDEOCARD-Zi-EXTDISP-15
Replacement LabMaster 9xxMZi-A CPU Video Card to support Zi-EXTDISP-15 Integrated Second Touch Screen Display Accessory
Serial Trigger and Decode
LM9Zi-1553 TD
MIL-STD-1553 Trigger and decode option for LabMaster 9Zi Series
LM9Zi-8B10B D
8b10b Decode Option for LabMaster 9Zi Series
LM9Zi-ARINC429bus Dsymbolic
ARINC 429 Bus Symbolic Decode option for LabMaster 9Zi
LM9Zi-AUDIOBUS TD
AudioBus trigger and decode for LabMaster 9Zi Series
LM9Zi-AUDIOBUS TDG
AudioBus trigger, decode, and graph for LabMaster 9Zi Series
LM9Zi-CANBUS TD
CAN Bus Trigger & Decode Option for LabMaster 9Zi Series
LM9Zi-DigRF3Gbus D
DigRF 3G Bus Decode option for LabMaster 9Zi Series
LM9Zi-DigRFv4bus D
DigRF V4 Bus Decode option for LabMaster 9Zi Series
LM9Zi-DPHYbus D
D-PHY Bus Decode option for LabMaster 9Zi Series
LM9Zi-EMB
Embedded bundle, Includes I2C TD, SPI TD, UART TD
LM9Zi-Fcbus D
FibreChannel decode annotation option for LabMaster 9Zi Series
LM9Zi-FLEXRAYBUS TD
FlexRay Bus Trigger & Decode Option for LabMaster 9Zi Series
LM9Zi-FLEXRAYBUS TDP
FlexRay Bus Trigger, Decode, and Physical Layer Test Option for LabMaster 9Zi Series
LM9Zi-HSPT
100 Mb/s to 3.125 Gb/s High Speed Serial Trigger Option for LabMaster 9 Zi Oscilloscopes
LM9Zi-I2CBUS TD
I2C Bus Trigger & Decode Option for LabMaster 9Zi Series
LM9Zi-LINBUS TD
LIN Bus Trigger & Decode Option for LabMaster 9Zi Series
LM9Zi-MSO-EMB
Embedded bundle, Includes MS-500-36 with I2C TD, SPI TD, UART TD
LM9Zi-PCIEBUS D
PCI Express (Gen 1.x, 2.0, and 3.0) Protocol Link Layer Decode Annotation for LabMaster 9Zi Series
LM9Zi-PROTOBUS MAG
Decode Annotation and Protocol Analyzer Software Synchronization Option for LabMaster 9Zi Series
LM9Zi-PROTOSYNC
Decode Annotation and Protocol Analyzer Software Synchronization Option for LabMaster 9Zi Series
LM9Zi-PROTOSYNC-BT
Decode Annotation and Protocol Analyzer+Bit Tracer SW Synchronization Option for LabMaster 9Zi Series
LM9Zi-SASbus D
SAS decode annotation option for LabMaster 9Zi Series
LM9Zi-SATAbus D
SATA decode annotation option for LabMaster 9Zi Series
LM9Zi-SPIBUS TD
SPI Bus Trigger & Decode Option for LabMaster 9Zi Series
LM9Zi-UART-RS232BUS TD
UART and RS232 Bus Trigger & Decode Option for LabMaster 9Zi Series
LM9Zi-USB2bus D
USB 2.0 Bus Decode option for LabMaster 9Zi Series
LM9Zi-USB3bus D
USB 3.0 Decode option for LabMaster 9Zi Series Supports USB 3.0, 2.0, 1.x
Jitter Analysis Software
LM9Zi-JITKIT
Clock Jitter Analysis Package for LabMaster 9 Zi Series
Miscellaneous
KYBD-1
Keyboard
ZI-EXTDISP-15
Top-mounted, Fully Integrated 15.3" WXGA with Touch Screen Display, Including all Cabling and Software
TTL-AUX-OUT
Accessory for Zi oscilloscopes to enable TTL level output from the Aux Out connector
Zi-FrontPanel-4Ch
Removable front panel with 4 independent channel controls for WavePro 7Zi and WaveMaster 8Zi Oscilloscopes
Rise-Time-Filter-100ps
Low-Pass Rise Time Filter 100 ps
Rise-Time-Filter-150ps
Low-Pass Rise Time Filter 150 ps
20dB-SMA-Attenuator
20 dB Attenuator
LM9Zi-PRO-TOWER
Professional Mobile Cabinet Tower for LabMaster 9 Zi Series. Holds qty. 1 Master, qty. 4 Slaves, and qty. 1 CPU
LM9Zi-MASTER-CPU-RACKMOUNT
Rackmount Ear Set for any LabMaster 9xxMZi-A Model. Set contains rackmount ears for the "Master" and the "CPU".
LM9Zi-SLAVE-RACKMOUNT
Rackmount Ear Set for any LabMaster 9xxSZi-A "Slave" Model.
Other Software Options
LM9Zi-SPECTRUM
Spectrum Analyzer Software Package for LabMaster 9 Zi Series
LM9Zi-EMC
EMC Pulse Parameter Software Package for LabMaster 9 Zi Series
Data Storage Software
LM9Zi-AORM
Advanced Optical Recording Measurement Package for LabMaster 9 Zi Series
LM9Zi-DDM2
Disk Drive Measurements Software Package for LabMaster 9 Zi Series
LM9Zi-DDA
Disk Drive Analysis Software Package for LabMaster 9 Zi Series
Power Analysis Software
LM9Zi-PMA2
Power Measure Analysis Software Package for LabMaster 9 Zi Series
Digital Filtering Software
LM9Zi-DFP2
Digital Filter Software Package for LabMaster 9 Zi Series
Mixed Signal Solutions
MS-500
500 MHz Maximum Input Frequency, 18 Channels, 50 Mpts/ch Mixed Signal Oscilloscope Option
MS-500-36
250 MHz Maximum Input Frequency, 36 Channels, 25 Mpts/ch Mixed Signal Oscilloscope Option
MS-250
250 MHz Maximum Input Frequency, 18 Channels, 10 Mpts/ch Mixed Signal Oscilloscope Option
Mixed Signal Accessories
MSO-MICTOR
Mictor Cable, D0-D35
MSO-3M
3M Interconnect Cable, D0-D17 or D18-D35
Serial Data Test Fixtures
TF-DSQ
Probe Deskew and Calibration Fixture
TF-ENET-B
10/100/1000Base-T Compliance Test Fixture
TF-ET
Telecom Adaptor Kit 100Ω, 120Ω, 75Ω
TF-HDMI-3.3V-QUADPAK
HDMI Pull-Up Terminator Quad Pack – for Use with the Efficere ET-HDMI-TPS-S Test Fixture
TF-SATA-C
SATA Compliance Test Fixture (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-SATA-C-Kit
SATA Compliance Test Kit (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-USB-B
USB 2.0 Testing Compliance Test Fixture
TF-USB3
USB 3.0 Test Fixture Set TF-USB3 ("A" male, "A" female, "B" female)
美國力科 LeCroy LabMaster 9 Zi-A 示波器可選探頭：
Active Voltage Probes
ZS1500-QUADPAK
Set of 4 ZS1500 Active Probes
ZS1000-QUADPAK
Set of 4 ZS1000 Active Probes
ZS1500
1.5 GHz, 1 MΩ, 0.9 pF Active Probe
ZS1000
1 GHz, 1 MΩ, 0.9 pF Active Probe
HFP2500
2.5 GHz Active Voltage Probe
Current Probes
CP030
30 Amps, 50 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
CP031
30 Amps, 100 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
AP015
30 Amps, 50MHz BW Current Probe - AC/DC, 50 Amp Peak Pulse
CP150
150 Amps, 10 MHz BW Current Probe - AC/DC , 500 Amp Peak Pulse
CP500
500 Amps, 2 MHz BW Current Probe - AC/DC , 700 Amp Peak
Differential Amplifiers
DXC100A
DXC100A, Selectable ÷100 or ÷10 , Passive Differential Probe Pair for DA18xxA series
DXC200
÷1,50 MHz low capacitance Passive Differential Probe Pair for DA18xxA series
DXC-5100
÷100 2.5KV Passive High Voltage Probe Pair for DA18xxA series. Requires DA101 for full performance
DA101
÷10 1MOhm Passive Attenuator for DXC series probes
DA1855A-PR2
2 Ch, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DA1855A-PR2-RM
Rack mountable version of the DA1855A-PR2
DA1855A-RM
DA1855A with rackmount
Differential Probes
D2505-PS
25 GHz Complete Probe System with Solder-In Tip (25 GHz) and Positioner Tip Browser (22 GHz)
D2005-PS
20 GHz Complete Probe System with Solder-In Tip (20 GHz) and Positioner Tip Browser (20 GHz)
D1605-PS
16 GHz Complete Probe System with Solder-In Tip (16 GHz) and Positioner Tip Browser (16 GHz)
D1305-PS
13 GHz Complete Probe System with Solder-In Tip (13 GHz) and Positioner Tip Browser (13 GHz)
D2505
WaveLink D2505 25 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
D2005
WaveLink D2005 20 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
D1605
WaveLink D1605 16 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
D1305
WaveLink D1305 13 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
WL-Plink
WaveLink ProLink probe body >3.5 GHz
WL-Pbus
WaveLink ProBus probe body = 3.5 GHz
DA18000AC
18 GHz Type “K” Differential Probe, AC Coupled
D11000PS
11 GHz Differential Probe System
D13000PS
13 GHz Differential Probe System
D300A-AT
WaveLink 4 GHz Differential Probe with Adjustable Tip Module
D620
WaveLink 6 GHz Differential probe module 5V
D610
WaveLink 6 GHz Differential probe module 2.5V
D420
WaveLink D420 4 GHz/5Vp-p & +/-3V Offset Range Differential Amplifier Small Tip Module
D410
WaveLink D410 4 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small tip Module
D620-PT
WaveLink D620 6 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx20-PT Adjustable Positioner Tip. 4.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D610-PT
WaveLink D610 6 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx10-PT Adjustable Positioner Tip. 2.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D500PT
WaveLink 6 GHz Differential Positioner Mounted Tip Module
D420-PT
WaveLink D420 4 GHz/5Vp-p & +/-3V Offset Range Differential Amplifier Small Tip Module w/Dx20-PT
D410-PT
WaveLink D410 4 GHz/2.5Vp-p & +/-3V Offset Range Differential Amplifier Small Tip Module w/Dx10-PT
ZD1500
1.5 GHz, 1.0 pF Active Differential probe
ZD1000
1 GHz, 1.0 pF Active Differential probe
ZD500
500 MHz, 1.0 pF Active Differential probe
ZD200
200 MHz, 3.5 pF, 1 Mohm Active Differential probe
WL-Plink-A
WaveLink ProLink Platform/Cable Assembly Kit for >=13 GHz WaveLink Probes.
WL-2.92MM
WaveLink 2.92mm Platform/Cable Assembly Kit for >=20 GHz WaveLink Probes.
LPA-2.92
ProLink to 2.92mm Adapter with Probe Power and Communication Pass Through
Dxx05-PT-KIT
WaveLink Dxx05-PT (22 GHz rating) Adjustable Positioner Tip Kit. For use with Dxx05 amplifiers.
Dx20-PT-KIT
WaveLink Dx20-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
Dx10-PT-KIT
WaveLink Dx10-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins(Qty. 4)/Sockets(Qty 2).
AP034
1 GHz Active Differential Probe
AP033
500 MHz Active Differential Probe
High Voltage Probes
PPE1.2KV
10:1/100:1 200/300 MHz 5M Ohm/50M Ohm
PPE2KV
100:1 400 MHz 50M Ohm High Voltage Probe
PPE4KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE5KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE6KV
1000:1 400 MHz 50M Ohm High-Voltage Probe
PPE20KV
1000:1 100 MHz 100M Ohm High-Voltage Probe
High Voltage Differential Probes
AP031
15 MHz Differential Probe
ADP300
High-Voltage Active Differential Probe
ADP305
High-Voltage Differential Probes From LeCroy
Optical Probes
OE425
Short wavelength O/E Converter (500-870 nm)
OE455
Long wavelength O/E Converter (950-1630 nm)
OE525
Short wavelength O/E Converter (500-870 nm)
OE555
Long wavelength O/E converter
Probe Parts and Kits
PACC-ZD001
Y Lead adapter, qty 1
PACC-ZD002
Solder in lead, qty 2
PACC-ZD003
Long spring ground, qty 2
PACC-ZD004
Tip Saver, qty 2
PACC-ZD005
Swivel tip adapter
PACC-ZD006
Small IC adapter, qty 2
PK111
ZD replacement kit
PK006-4
Probe 0.8mm clip (black and red)
PCF-200
Probe Characterization fixture
PACC-LD004
Long Right Angle Lead
PACC-LD003
Short Right Angle Lead
PACC-CL001
Probe Microclip (0.5 mm pitch)
PACC-CD008
Bendable Pogo Ground
LPA-SMA-KIT-A
Kit of Pro-Link to SMA Adapter, new style
LPA-SMA-A
Pro-Link to SMA Adapter, new style
LPA-K-KIT-A
Kit of ProLink to K/2.92 mm Adapters
LPA-K-A
ProLink to K/2.92 mm Adapter
Dx20-SP
Replacement Square Pin lead set for D320/D620
Dx20-SI
Replacement Solder tip lead set for D320/D620
Dx20-SI-HiTEMP
Replacement Solder tip leadset for use with D620/D320 and temperature extension cables
Dx20-QC
Replacement Quick Connect lead set for D320/D620
Dx20-PT
Replacement Dx20-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Dx20-HiTEMP
WaveLink Temperature extension cables for Dx20. Includes 1 set of matched 30" high temp cables, 1 solder tip leadset.
Dx10-SP
Replacement Square Pin lead set for D310/D610
Dx10-SI
Replacement Solder tip lead set for D310/D610
Dx10-SI-HiTEMP
Replacement Solder tip leadset for use with D610/D310 and temperature extension cables
Dx10-QC
Replacement Quick Connect lead set for D310/D610
Dx10-PT
Replacement Dx10-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Dx10-HiTEMP
WaveLink Temperature extension cables for Dx10. Includes 1 set of matched 30" high temp cables, 1 solder tip leadset.
D13000SMP
Replacement SMP Interconnect Cables
D13000SMA
Replacement SMA Interconnect Cables
D13000SI
Replacement Solder-In Interconnect Lead
D11000SMP
SMP Interconnect Leads
D11000SMA
Replacement SMA Interconnect Cables
D11000SI
Replacement solder-in interconnect lead
Transmission Line Probes
PP066
7.5 GHz Low Capacitance ÷10/÷20 probe
