Tektronix DPO4054B示波器
名稱：示波器
品牌：
型號：
簡介：Tektronix DPO4054B示波器：500MHz，四通道，2.5GSa/s，10M/CH，10.4XGA顯示，帶波形巡檢功能。 Tektronix DPO4054B示波器擁有高達1 GHz的帶寬和5 GS/s的采樣率，為查看快速變化...
申請服務
- 產品介紹

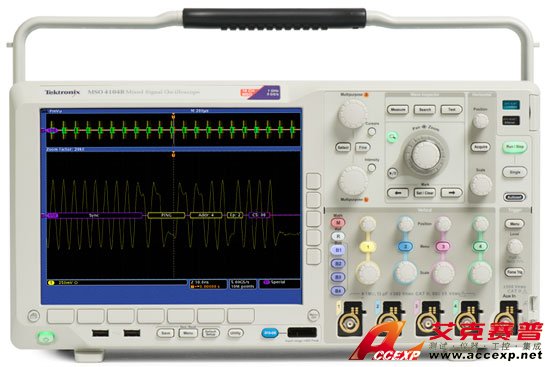

Tektronix DPO4054B示波器：500MHz，四通道，2.5GSa/s，10M/CH，10.4"XGA顯示，帶波形巡檢功能。
Tektronix DPO4054B示波器擁有高達1 GHz的帶寬和5 GS/s的采樣率，為查看快速變化的信號細節提供了所需的性能。Tektronix DPO4054B示波器多達20條通道，您可以使用一臺儀器，同時分析模擬信號、數字信號和串行信號。Tektronix DPO4054B示波器再加上自動串行和并行總線分析、創新的Wave Inspector®控制功能和自動電源測量功能，Tektronix DPO4054B示波器可以簡化了加快復雜設計的調試工作。
| Vertical System Analog Channels | |||
| Input Channels |
Analog Bandwidth (–3 dB) 5mV/div - 1V/div: |
500 MHz | |
| Calculated Rise Time 5 mV/div (typical): |
700ps | ||
| Hardware Bandwidth Limits | 20 MHz or 250 MHz | ||
| Input Coupling | AC, DC | ||
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% | ||
| Input Sensitivity, 1 MΩ | 1 mV/div to 10 V/div | ||
| Input Sensitivity, 50 Ω | 5 VRMS with peaks < ±20 V | ||
| Vertical Resolution | 8 bits (11 bits with Hi Res) | ||
| Max Input Voltage, 1 MΩ | 300 VRMS CAT II with peaks ≤ ±425 V | ||
| Max Input Voltage, 50 Ω | 5 VRMS with peaks < ±20 V | ||
| DC Gain Accuracy | ±1.5%, derated at 0.10%/°C above 30°C | ||
| Channel-to-Channel Isolation |
≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to t he rated bandwidth for any two channels having equal volts/div settings |
||
| Offset Range | |||
| Range | 1MΩ | 50Ω | |
| 1mV/div to 50mV/div | ±1V | ±1V | |
| 50.5 mV/div to 99.5 mV/div | ±0.5V | ±0.5V | |
| 100 mV/div to 500 mV/div | ±10V | ±10V | |
| 505 mV/div to 995 mV/div | ±5V | ±5V | |
| 1 V/div to 5 V/div | ±100V | ±5V | |
| 5.05 V/div to 10 V/div | ±50V | n/a | |
| Horizontal System Analog Channels | |||
| Maximum Sample Rate (All channels) | 2.5 GS/s | ||
| Maximum Record Length (All channels) | 20M points | ||
| Maximum Duration at Highest Sample Rate (All channels) | 8 ms | ||
| Time Base Range | 1ns to 1,000 s | ||
| Time Base Delay Time Range | –10 divisions to 5000 s | ||
| Channel-to-Channel Deskew Range | ±125 ns | ||
| Time Base Accuracy | ±5 ppm over any ≥1 ms interval | ||
